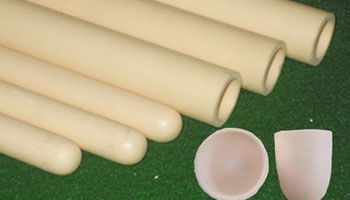

Thermocouple Protection Tubes One End Closed for use up to 1800oC
Grades: - 60% Al2O3, 80% Al2O3, 90% Al2O3, 99.5% Al2O3
Size(O.D) - from 6mm OD to 44mm OD (Smaller OD as well as larger OD up to 200mm can be taken up on request)
Lengths - up to 1500 mm regular size
- up to 2000 mm on request
Special Feature - Thermocouple tubes from Industrial Ceramics are slip cast i.e. the whole tube is made in one piece including the closed end. In contrast most tubes available globally are extruded and then the closed end is joined to the tube. The joint becomes the weak spot Failure generally occurs at that joint.
Uses - Protective Tube for Thermocouple sensors
Tubes Both Ends Open for use up to 18000C
Grades: - 60% Al2O3, 80% Al2O3, 90% Al2O3, 99.5% Al2O3
Size (O.D) - from 4mm OD to 250mm OD.
Lengths - up to 1500 mm regular size
- up to 2000 mm on request
Uses - Heating Element Support Tubes
- As Heating Chamber in Tubular Furnaces
- Gas passing Tubes for special applications
Beads (Sleeves) Single & Multiple Bore
Grades: - 60% Al2O3, 80% Al2O3, 99.5% Al2O3,
Size (O.D) - from 1mm OD to 20mm OD.
Lengths - up to 1500 mm regular size
- Upto 2000 mm on request
